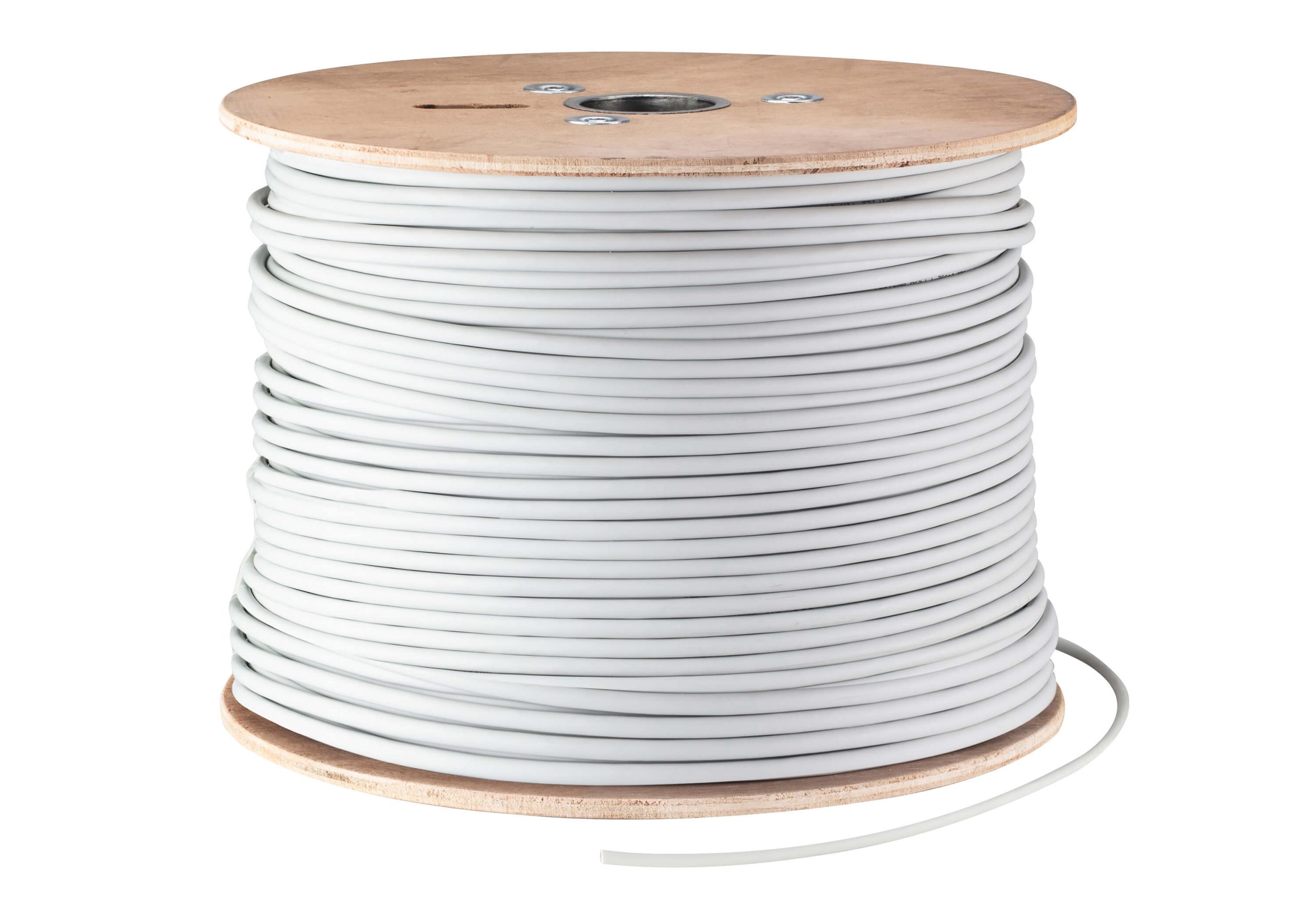

300 m HDBaseT 3.0 U/FTP Cat 6A Cable
Engineered to simplify AV / IT integration, the 2L-29330 U/FTP Cat 6A Cable features HDBaseT 3.0 technology to provide uncompressed transmission of up to True 4K video, audio, Ethernet, power, and control signals across 100m with the support for sweep frequencies up to 500 MHz. The cable length of 300m can be tailored to fit your precise needs, adding flexibility for various project requirements. The 2L-29330 is not attached with RJ-45 connector, so it is highly recommended to order ATEN 2A-245G Cat 6A RJ-45 connector individually for better performance.

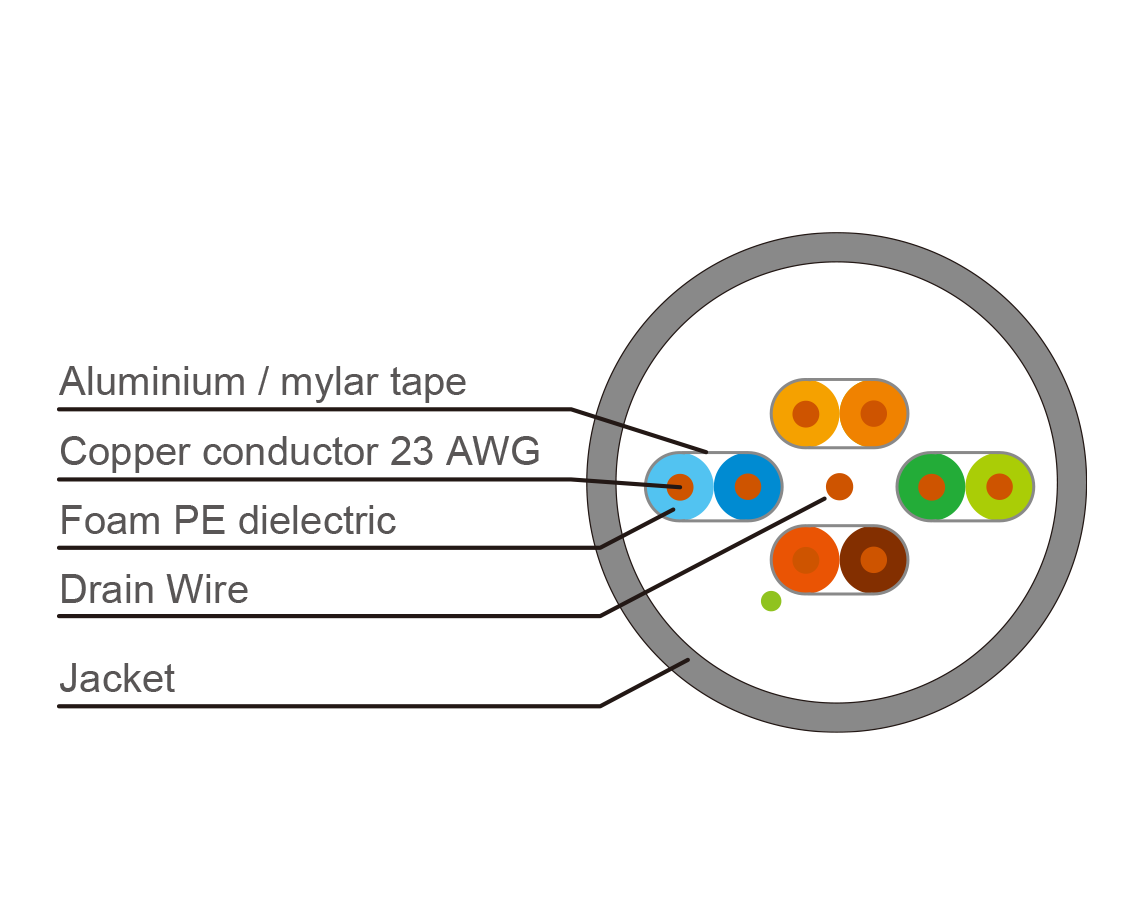

The 2L-29330 features four individually Al-Mylar tape-shielded pairs of 23 AWG wire, further protected by an overall braid of tinned copper. The shielding provides protection against electromagnetic interference (EMI); the jacket is made of eco-friendly Low Smoke Zero Halogen (LSZH) materials for increased safety, particularly in the event of a fire.
The 2L-29330 is HDBaseT Recommended Cable and works seamlessly with ATEN HDBaseT extenders, splitters, and matrix switches, making it a versatile choice for any AV / IT setup. This cable is perfect for large-scale installations where long-distance, high-quality AV and control signal transmission is crucial, such as conference rooms, lecture halls, banquet halls, museums, and exhibition centers.
The 2L-29330 is engineered for professional environments that demand superior performance over long-distances. Its extended length and advanced shielding ensure that users AV and IT systems operate at peak efficiency, delivering uncompressed True 4K signals without interference.
Specifications
| Cable Type | Cat 6A U/FTP |
| Cable Length | 300m / 990ft |
| Conductor | |
| Size | 23AWG |
| Construction | Individual shielded pair |
| Material | Solid plain annealed bare copper wire |
| Number of Pairs | 4 twisted pairs, 2 single conductors paired |
| Insulation | |
| Material | Foamed PE , 1.46 +/- 0.1mm |
| Color codes | Twisted pair color code: Light Blue / Blue Light Orange / Orange Light Green / Green Light Brown / Brown |
| Binder | |
| Material | Polyester |
| Shield | |
| Material | A layer of aluminum-foil laminated tape |
| Drain Wire | |
| Construction | 26AWG |
| Jacketed | |
| Material | LSZH (Low Smoke Zero Halogen) |
| Diameter | 7.2+/-0.5 mm |
| Color | Gray |
| Electrical | |
| DC Resistance | 9.38 Ω (max.) / 100m at 20 °C |
| Propagation Delay | 535.6ns (max.) / 100m at 500Mhz |
| Propagation Delay Skew | 45ns Max./100m |
| Insertion Loss | 45.3 dB (max.) / 100m at 500Mhz |
| Impedance | 100+/-15 Ω |
| Environmental | |
| Temperature (Operating / Storage) | -20°C to 60°C |
| Physical Properties | |
| Weight | 17.00 kg ( 37.44 lb ) |
| Standard Support | ANSI/TIA-568.2-D HDBaseT 3.0 Premium cable |
