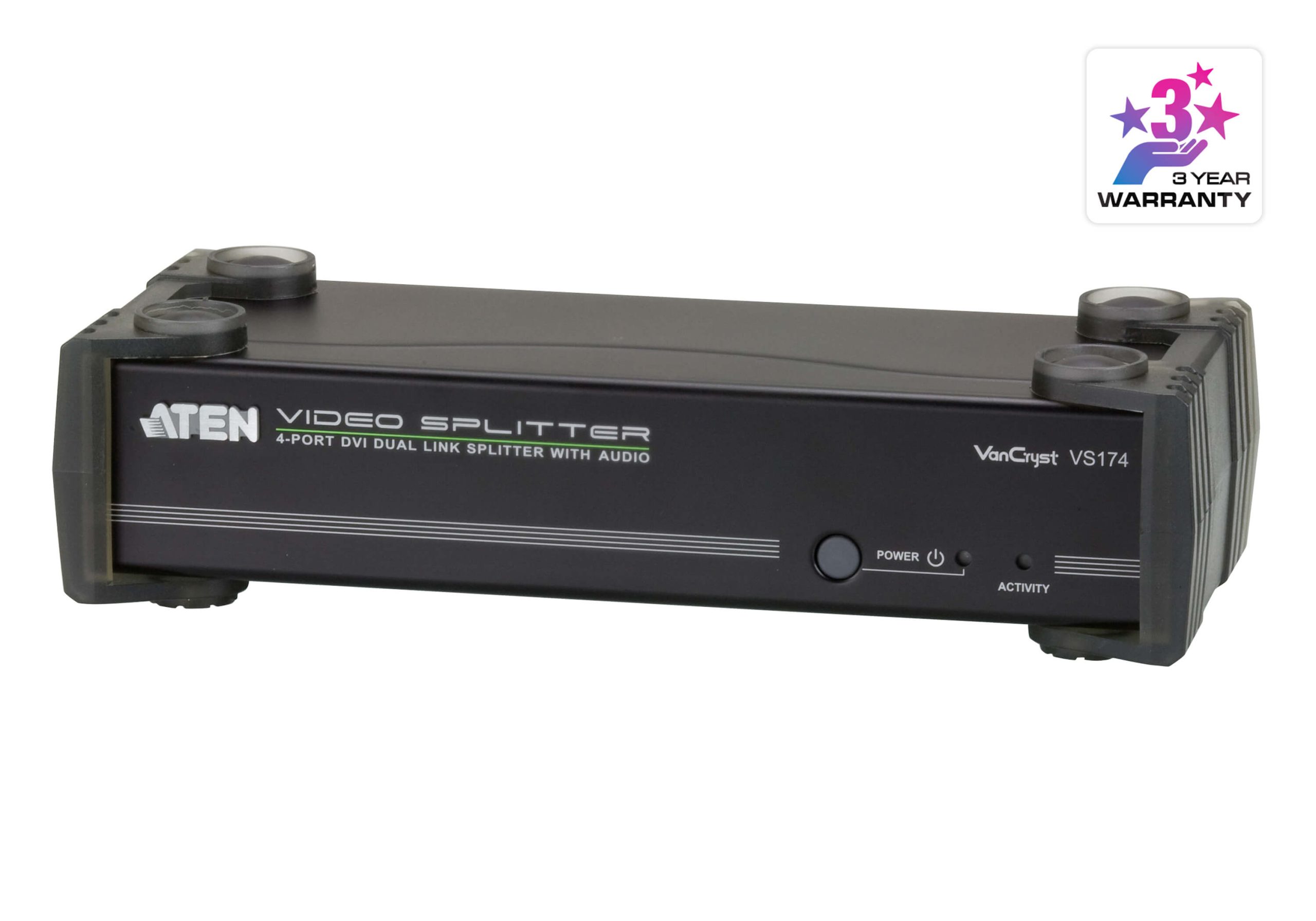

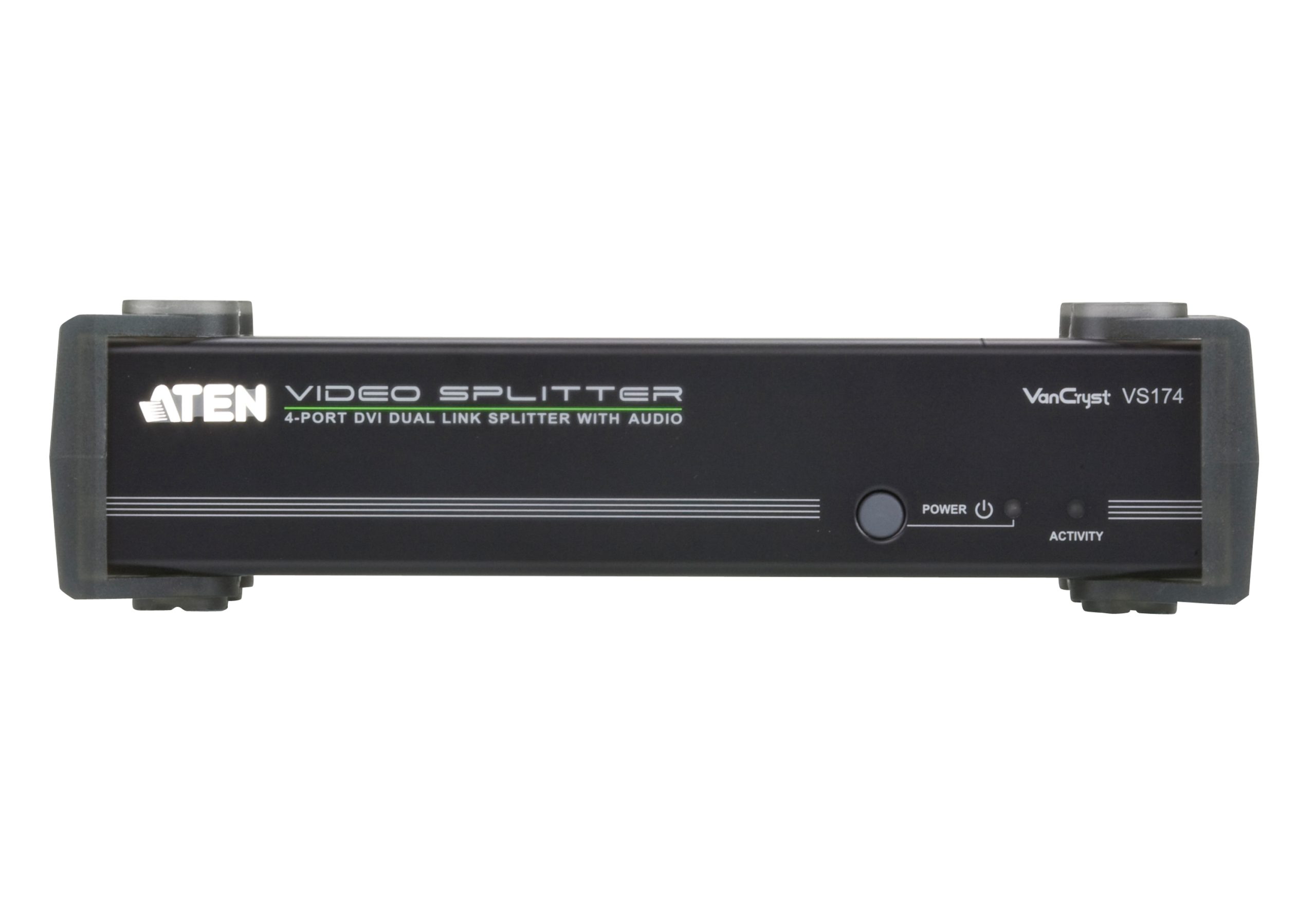

ATEN VS174
4-Port DVI Dual Link/Audio Splitter
The VS174 4-Port DVI Dual Link Splitter with Audio combines DVI quality video and audio, taking signals from an audio/ video source and replicating them to four audio/video outputs. This video splitter uses dual link technology, which offers high bandwidth capacity for added transmission power and faster refresh rates, thereby providing better video quality of viewing resolutions up to 2560 x 1600.

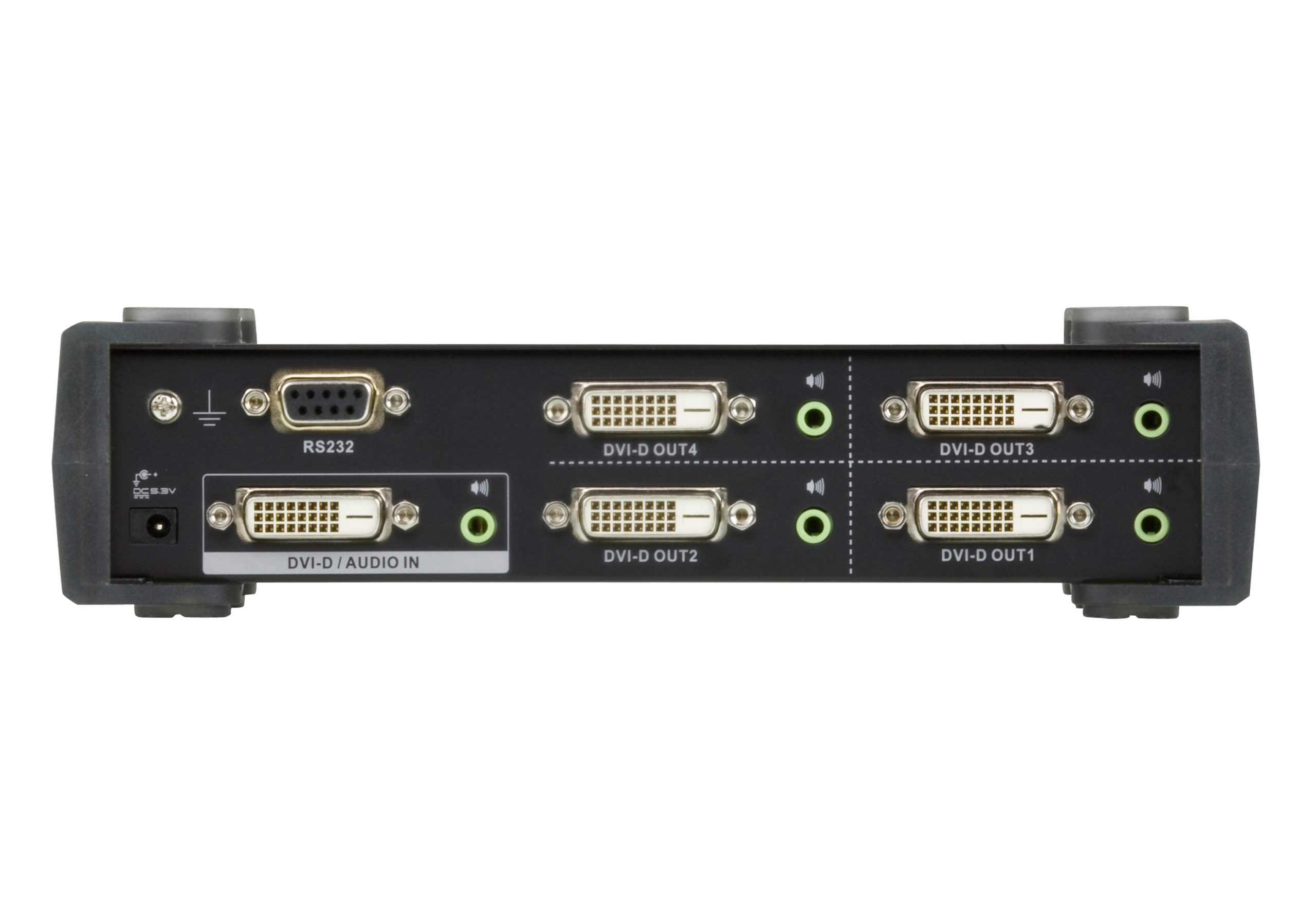

The built-in bi-directional RS-232 port on the rear panel allows the splitter to be controlled through a Control Unit, PC, and/or home automation/home theater software package for complete system integration.
The VS174 is easy to operate and can be cascaded to three levels, handling up to 64 monitors, which makes them the ideal solution for situations such as:
a) Broadcasting video information to the public (news headlines,stock prices, airline and train schedules, etc.)
b) Company training facilities
c) Classroom instruction

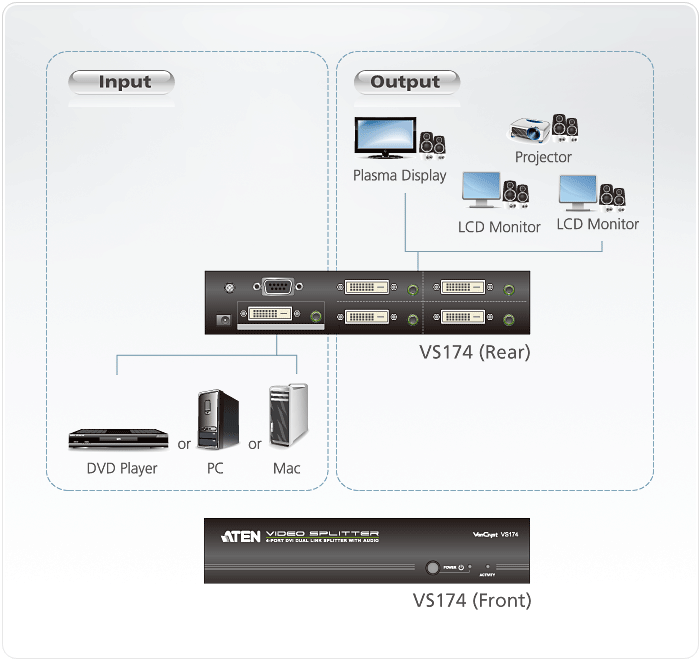

Diagram
Specification
| Video Input | |
| Interfaces | 1 x DVI-D Female (White) |
| Impedance | 100 Ω |
| Max. Distance | 1.8 m |
| Video Output | |
| Interfaces | 4 x DVI-D Female (White) |
| Impedance | 100 Ω |
| Video | |
| Max. Data Rate | 13.5 Gbps (2.25 Gbps Per Lane) |
| Max. Pixel Clock | 225 MHz |
| Max. Resolution | Up to 2560 x 1600 |
| Max. Distance | Up to 5 m |
| Audio | |
| Input | 1 x Mini Stereo Jack Female (Green) |
| Output | 4 x Mini Stereo Jack Female (Green) |
| Control | |
| RS-232 | Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
| EDID Settings | EDID Mode: Default / Port 1 / Auto |
| Connectors | |
| Power | 1 x DC Jack |
| Power Consumption | DC5.3V:5.91W:28BTU/h
Note: |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20 – 60°C |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.73 kg ( 1.61 lb ) |
| Dimensions (L x W x H) | 21.00 x 8.80 x 5.55 cm (8.27 x 3.46 x 2.19 in.) |
| Carton Lot | 5 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
