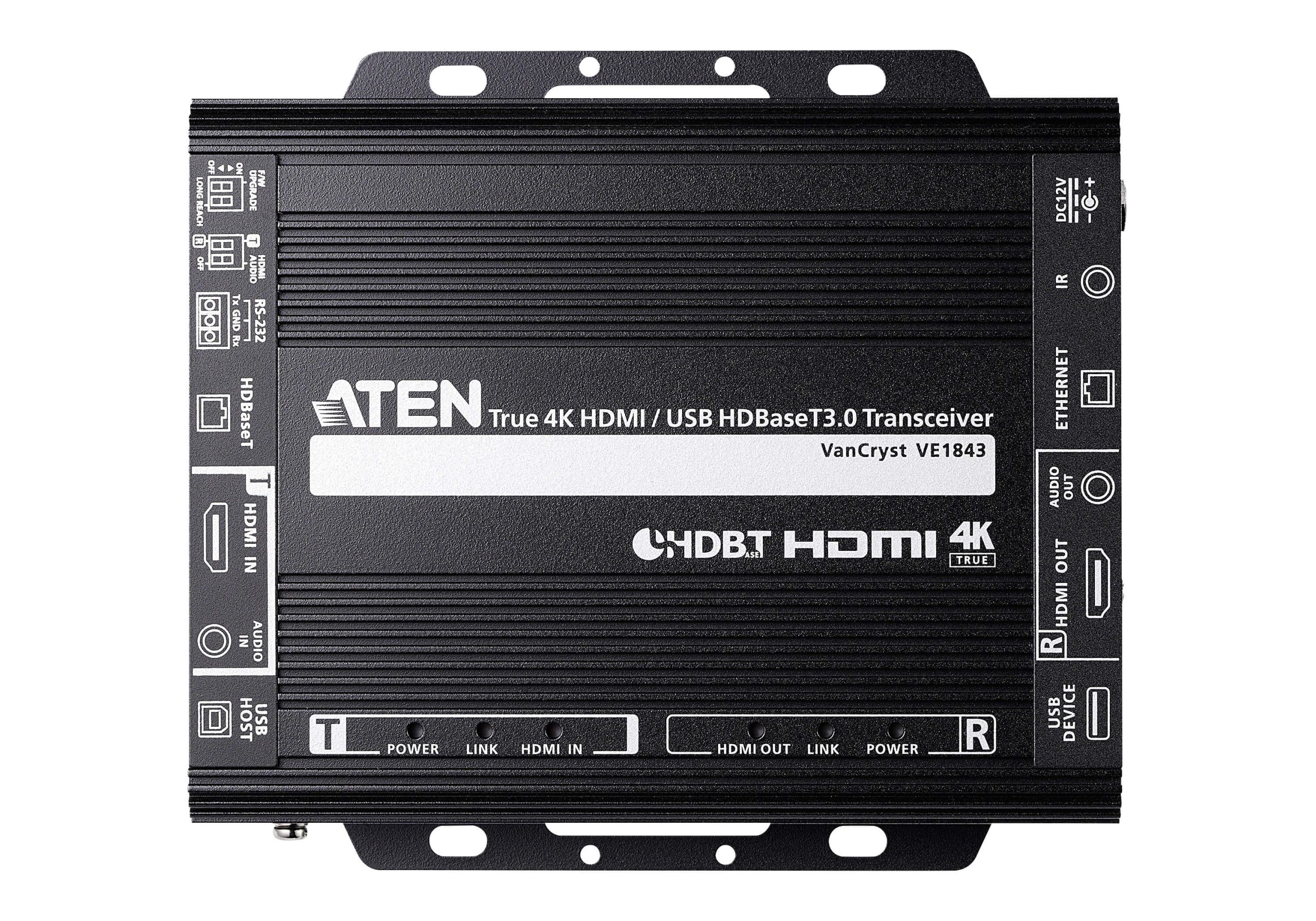

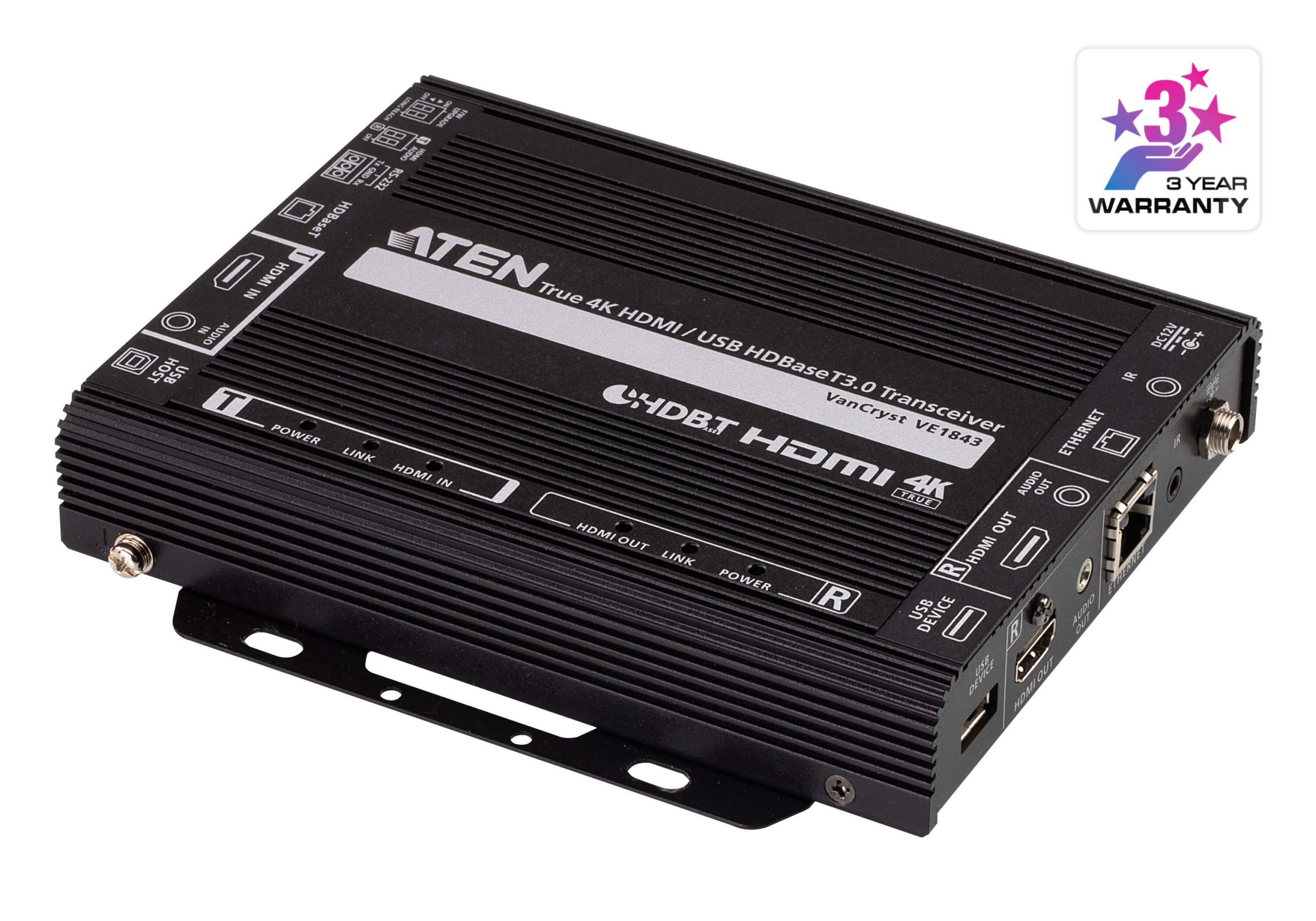

ATEN VE1843
True 4K HDMI / USB HDBaseT 3.0 Transceiver

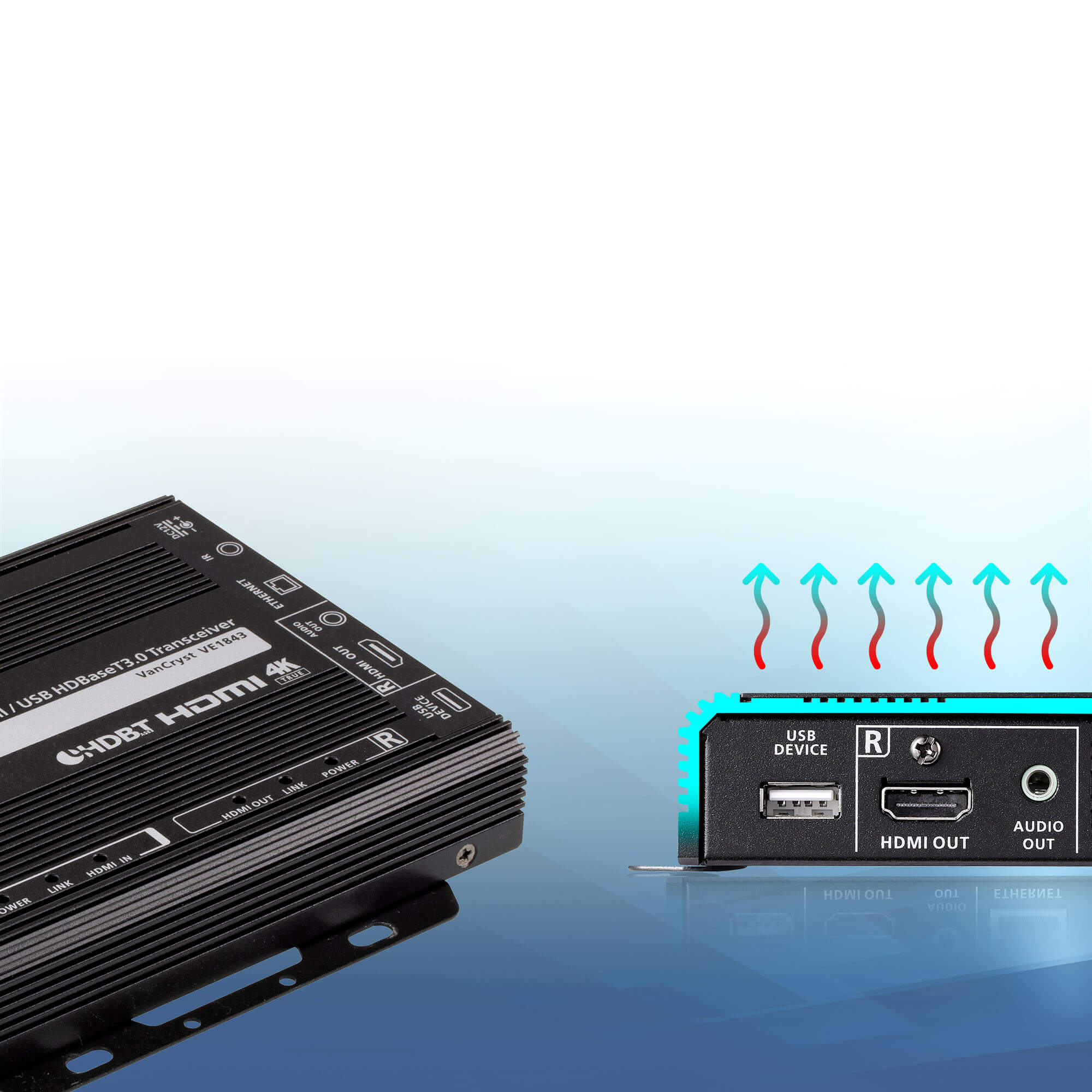

As ATEN ’s first video transceiver, the VE1843 features the latest HDBaseT 3.0 technology, allowing users to easily configure the unit to be a transmitter or receiver depending on the AV solution they need, while enabling uncompressed True 4K HDMI transmission up to 100m/328ft with zero latency via just one Cat 6A U/FTP cable. With its user-oriented hardware design and enhanced durability, this new model is purpose-built for spaces that require long-distance, yet high-quality, signal transmission with easy installation and non-stop operation, such as conference rooms, auditoriums, banquet halls, and museums.
* Cat 6A U/FTP is the recommended setting. The skewless nature and inter-pair shielding of FTP provides the better near-end crosstalk (NEXT, source end) and far-end crosstalk (FEXT, receiver end) parameters required to achieve the maximum performance and distance.
One Unit, Two Configurations

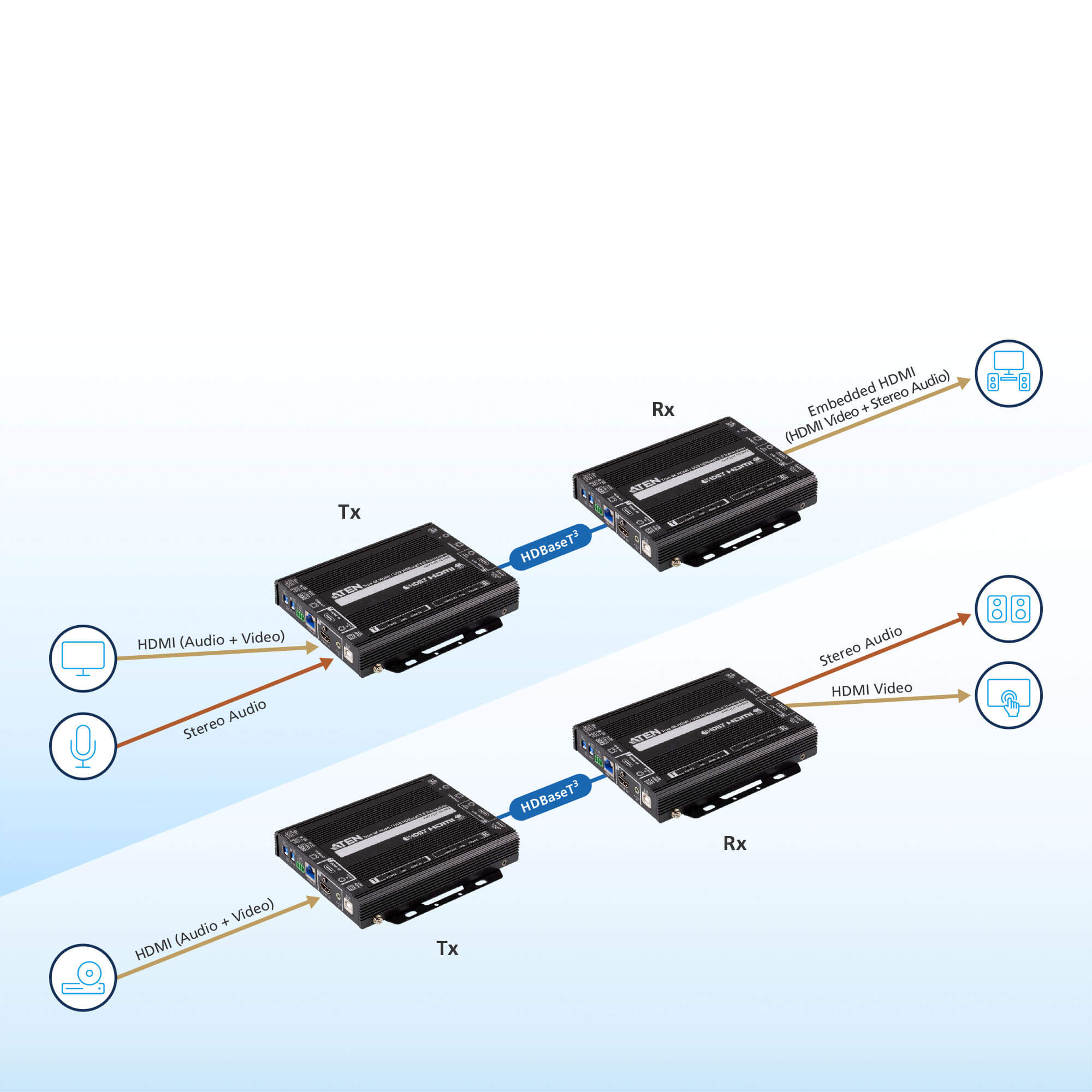

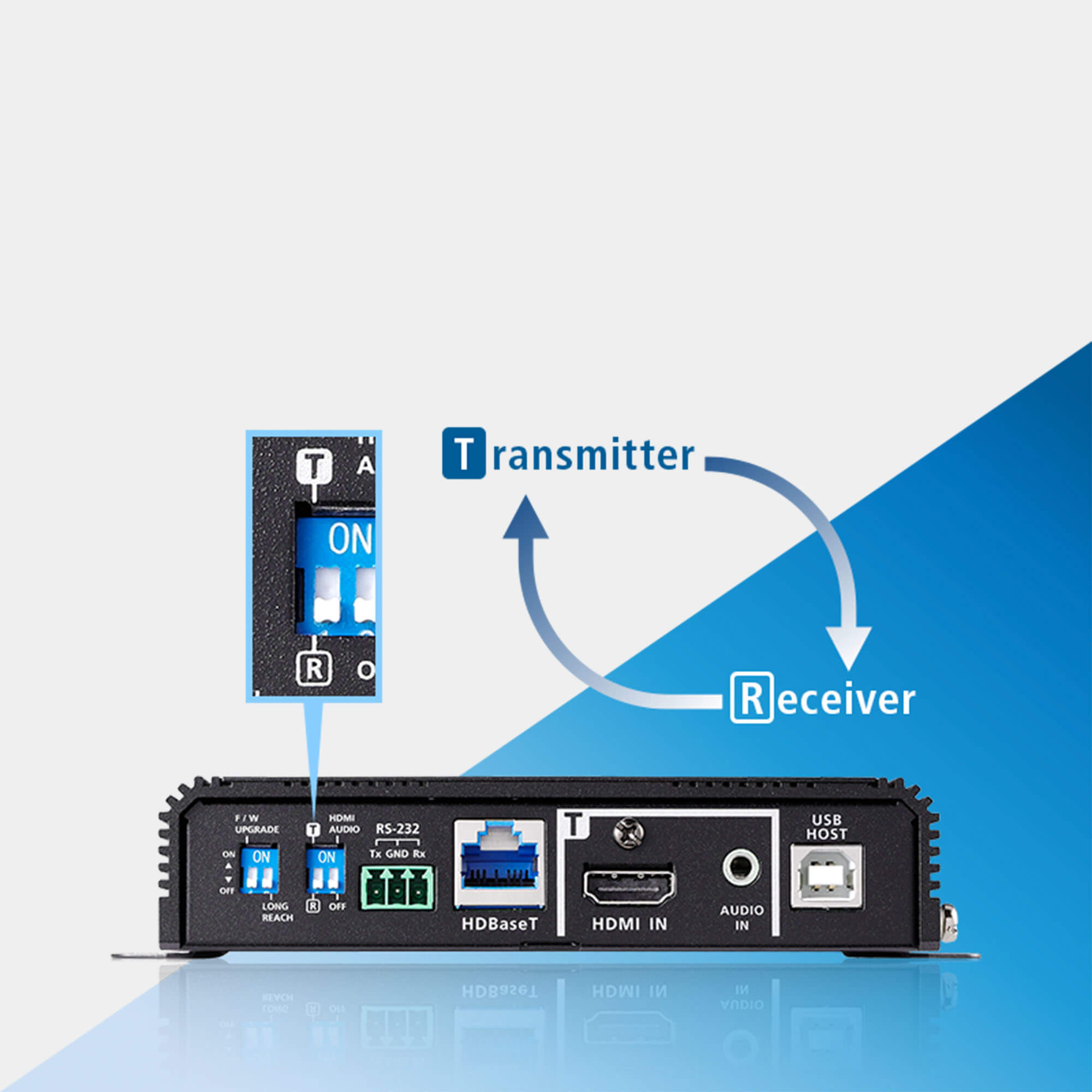

VE1843 integrates the functions of a transmitter and a receiver into one unit for users to easily set it to the direction (Tx / Rx) required and enjoy more flexible deployment with video matrix switches, splitters, and more.
Uncompressed True 4K HDMI with HDR @100m
Delivering uncompressed True 4K @ 60Hz 4:4:4 HDMI with HDR up to 100m/328ft over a Cat 6A U/FTP cable with no latency, VE1843 offers superior video quality even when output devices are located far away.

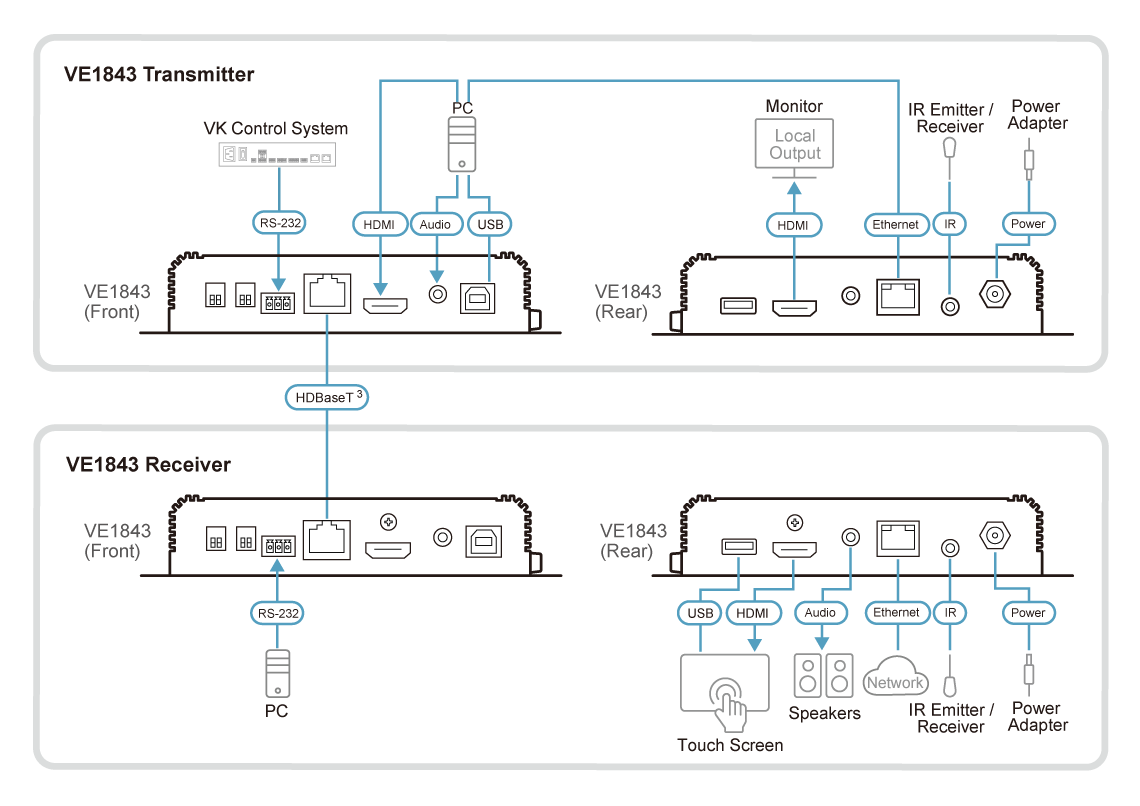

One Cable to Transmit It All
Streamline complex installation and enjoy multi-signal control by using a Cat 6A U/FTP cable to extend signals including high-quality video, audio, IR, RS-232, Gigabit Ethernet, and USB 2.0 for remotely located equipment management.
Product Comparison
| Option |
True 4K HDMI / USB HDBaseT 3.0 Transceiver
|
HDMI HDBaseT Extender (4K@100m) (HDBaseT Class A)
|
HDMI HDBaseT Extender with PoH (4K@100m) (HDBaseT Class A)
|
True 4K HDMI HDBaseT-Lite Extender (True 4K@35m) (HDBaseT Class B)
|
|---|---|---|---|---|
| Interface |
HDMI
|
N/A
|
N/A
|
N/A
|
| Input Port |
HDMI
|
HDMI
|
HDMI
|
HDMI
|
| Output Port |
HDMI
|
HDMI
|
HDMI
|
HDMI
|
| Max. Resolution |
4096 x 2160 @ 60Hz (4:4:4)
|
4096 x 2160 @ 60Hz (4:2:0)
4096 x 2160 @ 30Hz (4:4:4)
|
4096 x 2160 @ 60Hz (4:2:0)
4096 x 2160 @ 30Hz (4:4:4)
|
3840 x 2160 @ 60Hz (4:4:4)
|
| Max. Distance |
100 m
|
100 m
|
100 m
|
70 m
|
| Unit to Unit |
Single Cat 6a
ATEN 2L-2910 Cat 6
|
Single Cat 6
Single Cat 5e
Single Cat 6a
ATEN 2L-2910 Cat 6
|
Single Cat 5e
6a cable
6 cable
ATEN 2L-2910 Cat 6
|
Single Cat 6
Single Cat 5e
Single Cat 6a
ATEN 2L-2910 Cat 6
|
| Audio |
HDMI
Stereo Audio
|
HDMI
|
HDMI
|
HDMI
|
| Control |
Ethernet
USB Channel
IR Channel
RS-232 Channel
|
N/A
|
IR Channel
RS-232 Channel
|
RS-232 Channel
|
| EDID Support |
N/A
|
|||
| HDBaseT | ||||
| USB Touch Panel |
N/A
|
N/A
|
N/A
|
|
| USB Peripheral |
N/A
|
N/A
|
N/A
|
|
| Anti-jamming |
N/A
|
N/A
|
||
| HDMI audio extracted |
N/A
|
N/A
|
N/A
|
|
| POH |
N/A
|
N/A
|
N/A
|
|
| Long Reach Mode |
N/A
|
N/A
|
||
| CEC (Consumer Electronics Control) |
N/A
|
N/A
|
||
| Audio Embedder |
N/A
|
N/A
|
N/A
|
|
| RS-232 Support |
N/A
|
N/A
|
||
| Max. Bandwidth |
18 Gbps
|
10.2 Gbps
|
10.2 Gbps
|
10.2 Gbps
|
| Transmission Interface |
Cat6a/7
|
N/A
|
N/A
|
N/A
|
| Max. Pixel Clock |
600 MHz
|
340 MHz
|
340 MHz
|
340 MHz
|
| HDCP |
HDCP 2.3
|
HDCP 2.2
|
HDCP 2.2
|
HDCP 2.2
|
| HDBaseT |
3.0
|
N/A
|
N/A
|
N/A
|
Spesification
| Video Input | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 Ω |
| Max. Distance | 5 m |
| Video Output | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 Ω |
| Max. Distance | 5 m |
| Video | |
| Max. Data Rate | 18Gbps (6Gbps per lane) |
| Max. Pixel Clock | 600 MHz |
| Compliance | HDMI (3D, Deep Color, 4K/60Hz); 4K HDR HDCP2.2/2.3 Compatible Consumer Electronics Control (CEC)**The CEC signals are only bypassed from the transmitter unit to the receiver unit and do not support local output. |
| Max. Resolution | 4096 x 2160 @ 60Hz (4:4:4) 3840 x 2160 @ 60Hz (4:4:4) |
| Max. Resolutions / Distance | Up to 4K x 2K @ 60Hz (4:4:4) @100m (HDBaseT3 Certified Cat 6a U/FTP cable / ATEN’s tailor-made HDBaseT cable)
Up to 1080P@150m @Long reach mode (Cat 6/ 6a or above cable) |

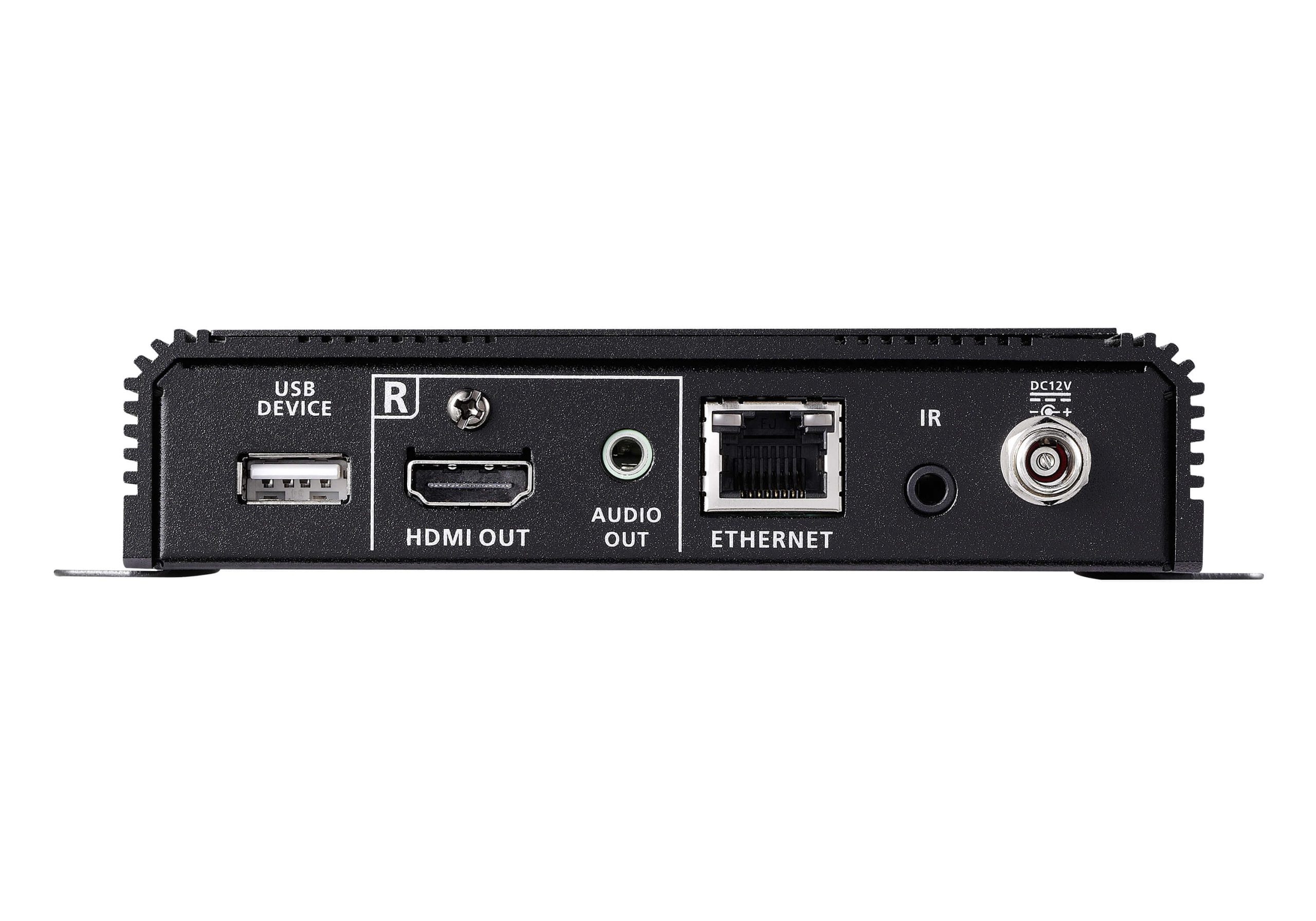

| Audio | |
| Input | 1 x HDMI Type A Female (Black) 1 x Stereo Audio ( mini stereo Jack female , Green) |
| Output | 1 x HDMI Type A Female (Black) 1 x Stereo Audio ( mini stereo Jack female , Green) |
| Connectors | |
| Unit To Unit | 1 x RJ-45 Female |
| Power | 1 x DC Jack (Black) with locking |
| Control | |
| RS-232 Channel | Connector: 1 x Terminal Block, 3 pole Baud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control |
| IR Channel | 1 x Mini Stereo Jack Female, (Bi-directional, Black) 30K ~56KHz full range transmission |
| Ethernet Channel | 1 x GbE (RJ45 Female) |
| USB Channel | 1 x USB2.0 Type B Female (White, Host) 1 x USB2.0 Type A Female (White, Device) Transmission data bandwidth: Up to 300Mbps |
| Power Consumption | DC12V:6.45W:40BTU/h
Note: |

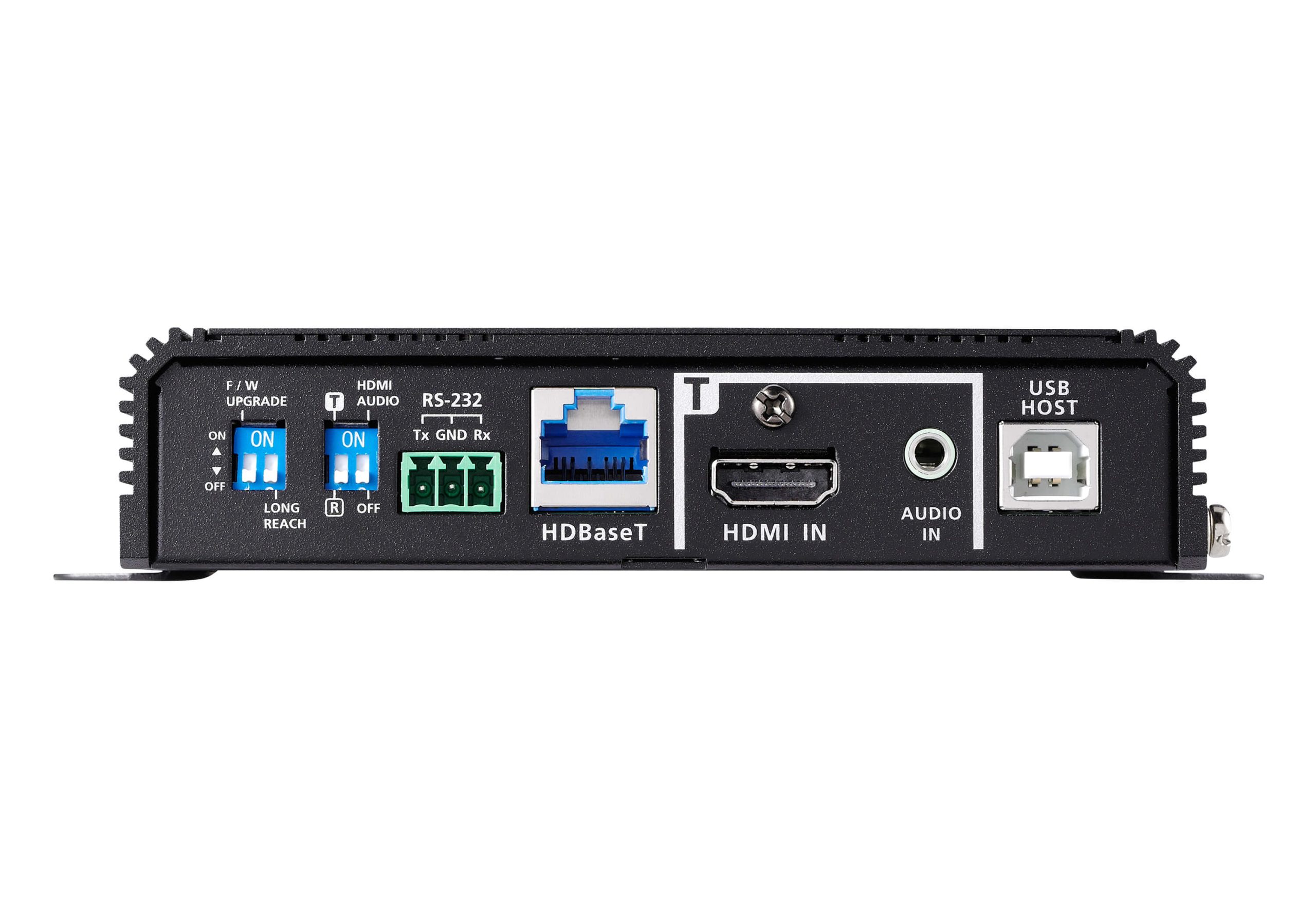

| Switches | |
| Selection | 1 x Slide Switch – TX (Be a Transmitter) / RX (Be a Receiver) selection |
| Mode Selection | 1 x Slide Switch – HDMI Audio embed or De-embed ON/OFF selection |
| Firmware Upgrade | 1 x Slide Switch – ON/OFF |
| Long Reach Mode Switch | 1 x Slide Switch – ON/OFF |
| LEDs | |
| Power | 1 x TX (Transmitter, Green) 1 x RX (Receiver ,Green)NOTE: The TX or RX LED lights to indicate which role the VE1843 is set to. |
| Link | 1 x TX (Transmitter, Orange) 1 x RX (Receiver, Orange) |
| Video Output | 1 x RX HDMI OUT (Receiver, Orange) |
| Video Input | 1 x Tx HDMI IN (Transmitter, Orange) |
| Environmental | |
| Operating Temperature | 0 – 40°C |
| Storage Temperature | -20 – 60°C |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.64 kg ( 1.41 lb ) |
| Dimensions (L x W x H) | 17.15 x 15.09 x 3.00 cm (6.75 x 5.94 x 1.18 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Input Resolutions | 4096 x 2160p 24/25/30/50/60Hz | 1920 x 1200 @ 60Hz |
| 3840 x 2160p 24/25/30/50/60Hz | 1920 x 1200 @ 60Hz (Reduced Blanking) | |
| 3840 x 2400p 60Hz 4:4:4 | 1600 x 1200 @ 60Hz | |
| 3840 x 2160p 50/60Hz 4:2:0 | 1920 x 1080 @ 60/120/240Hz | |
| 4096 x 2160p 50/60Hz 4:2:0 | 1680 x 1050 @ 60Hz | |
| 2560 x 1440 @ 60Hz | 1400 x 1050 @ 60Hz | |
| 2560 x 1440 @ 75Hz | 1400 x 900 @ 60Hz | |
| 1080p 24/25/30/50/60Hz | 1280 x 1024@ 60/75Hz | |
| 1080i 50/60Hz | 1280 x 800 @ 60Hz | |
| 720p 50/60Hz | 1024 x 768 @ 60/70/75Hz | |
| 576p 50Hz (4:3)/(16:9) | 800 x 600 @ 56/60/72/75Hz | |
| 480p 60Hz (4:3)/ (16:9) | 720 x 400 @ 70Hz | |
| 640 x 480 @ 60/67/72/75Hz |
