Plug-n-Play

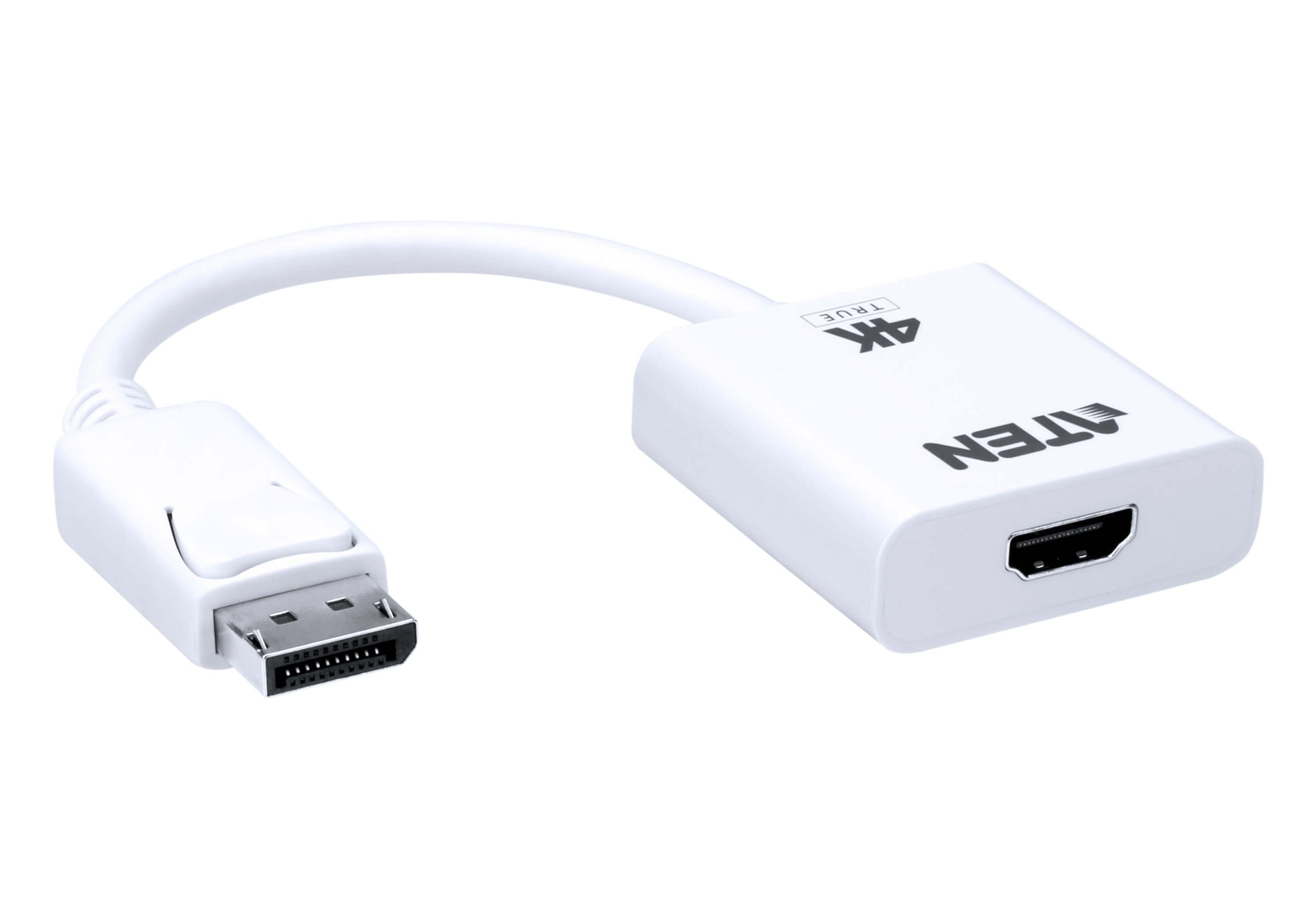

No installation software or drivers required. The VC986B is the perfect solution for connecting DisplayPort inputs to HDMI output displays. The built-in chip ensures high quality signal conversion, smooth output, and compatibility with DP++.
Supports True 4K
Supports resolutions up to True 4K, making it highly compatible across devices.
| Video Input | |
| Interfaces | 1 x DisplayPort Male (White) |
| Video Output | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Video | |
| Max. Pixel Clock | 600 MHz |
| Max. Resolution | 4096×2160@60Hz / 3840×2160@60Hz |
| Compliance | DP1.2a / HDMI 2.0 / HDCP 2.2 |
| Max. Data Rate | 18 Gbps (6 Gbps Per Lane) |
| Audio | |
| Output | 1 x HDMI Type A Female (Black) |
| Environmental | |
| Operating Temperature | 0 – 50 ºC |
| Storage Temperature | -20–60 ºC |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.04 kg ( 0.09 lb ) |
| Dimensions (L x W x H) | 18.00 x 4.50 x 1.50 cm (7.09 x 1.77 x 0.59 in.) |
| Carton Lot | 40 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
