Plug-n-Play

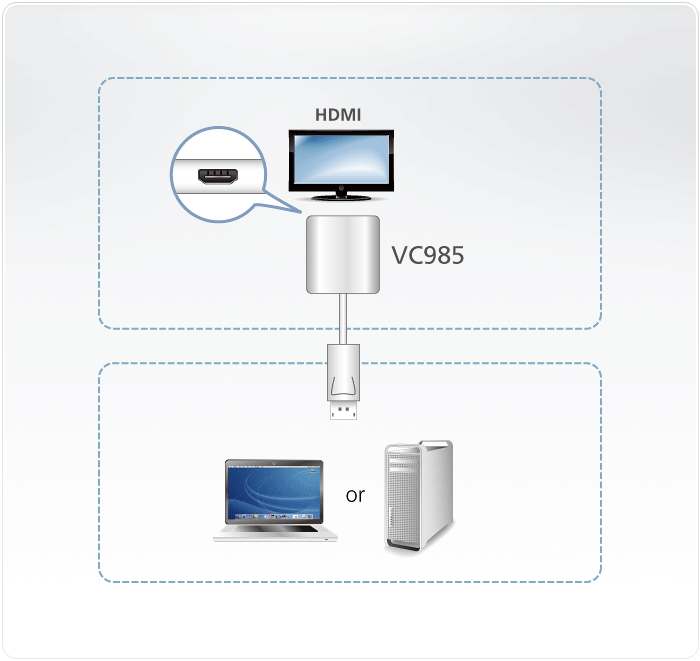

No installation software or drivers required. The VC985 is the perfect solution for connecting DisplayPort inputs to HDMI output displays.
Supports 1080p
Supports resolutions up to 1080p, making it highly compatible across devices.
| Video Input | |
| Interfaces | 1 x DisplayPort Male (White) |
| Video Output | |
| Interfaces | 1 x HDMI Type A female (Black) |
| Video | |
| Max. Pixel Clock | 165MHz |
| Max. Resolution | 1920 x 1080@60HZ |
| Compliance | DP1.2, HDMI 1.3 |
| Audio | |
| Output | 1 x HDMI Type A Female (Black) |
| Environmental | |
| Operating Temperature | 0 – 50 ºC |
| Storage Temperature | -20–60 ºC |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.04 kg ( 0.09 lb ) |
| Dimensions (L x W x H) | 18.00 x 4.50 x 1.50 cm (7.09 x 1.77 x 0.59 in.) |
| Carton Lot | 40 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
