Plug-n-Play

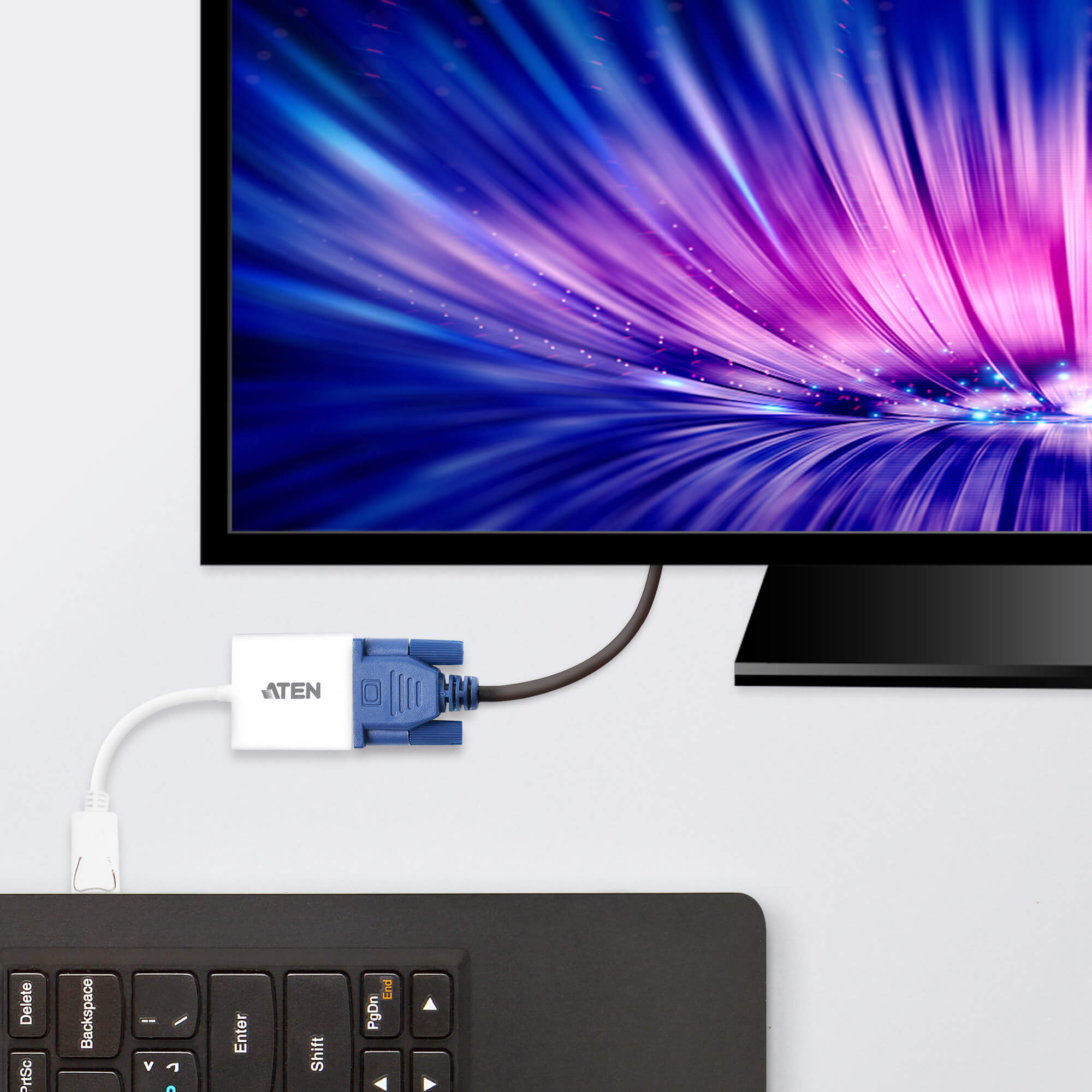

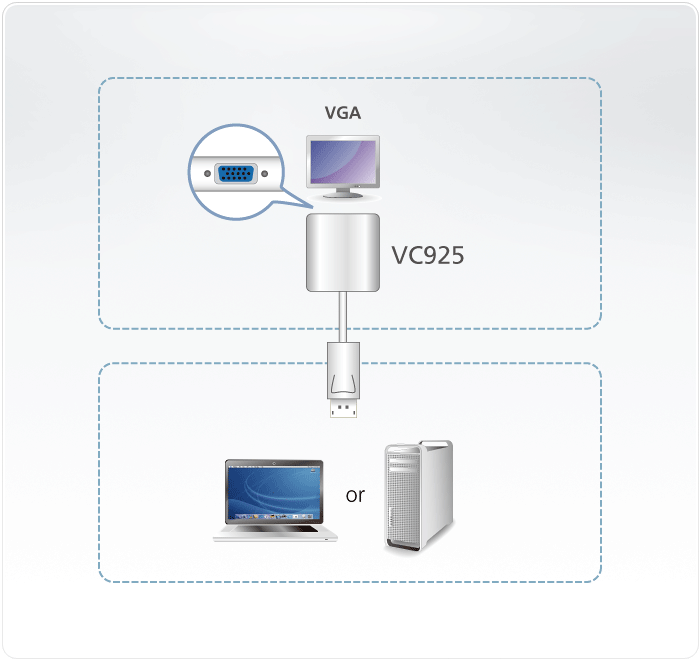

No installation software or drivers required. The VC925 is the perfect solution for connecting DisplayPort inputs to VGA output displays.
Superior Video Resolution
Supports VGA, SVGA, XGA, SXGA, UXGA, and resolutions up to 1920 x 1200 and 1080p, making it highly compatible across devices.
| Video Input | |
| Interfaces | 1 x DisplayPort Male (White) |
| Video Output | |
| Interfaces | 1 x HDB-15 Female (Blue) |
| Video | |
| Max. Pixel Clock | 165 MHz |
| Max. Resolution | Input up to 4096 x 2160@60Hz (4:4:4) Output up to 1920 x 1200 |
| Compliance | DP1.2 |
| Environmental | |
| Operating Temperature | 0 – 50 ºC |
| Storage Temperature | -20 – 60 ºC |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.04 kg ( 0.1 lb ) |
| Dimensions (L x W x H) | 18.00 x 4.50 x 1.50 cm (7.09 x 1.77 x 0.59 in.) |
| Carton Lot | 40 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
